Advanced Thermal Imaging Camera
Exx-Series
For hardworking professionals in predictive maintenance, electrical, and building inspection, the most valuable tools are the ones that increase work efficiency and help them identify potential problems before they lead to expensive repairs.
The Flir Exx-Series offers a range of full-featured handheld thermal cameras fit for every budget, making all your inspections more convenient. To make your processes even more efficient, you can also pair your camera with a Flir FlexView® dual field-of-view lens to easily switch from wide-area to telephoto scanning, providing you with a comprehensive solution that involves much less hassle, effort, and time.
Why Choose the Flir Exx-Series?
We designed Exx-Series cameras to be your go-to tool for a wide range of applications, with the features you need to work efficiently and obtain accurate, actionable results.
Each Flir Exx-Series is packed with the features needed to find hot spots, detect early signs of building deficiencies, troubleshoot electrical and mechanical systems, and prevent problems before they cause serious damage.
Pair your Exx-Series camera with a Flir FlexView® dual field-of-view lens to conveniently switch from wide-area to telephoto scanning in just one click, optimizing your inspections and measurements. Toggle between the 14° and 24° FOV Lens in seconds to get a clearer view of the whole picture.
*Not available for E54 camera
Allowing for even more clarity, these latest Exx-Series camera models offer up to 640 × 480 pixel thermal imaging to uncover your hidden issues and quickly detect problems before they worsen.

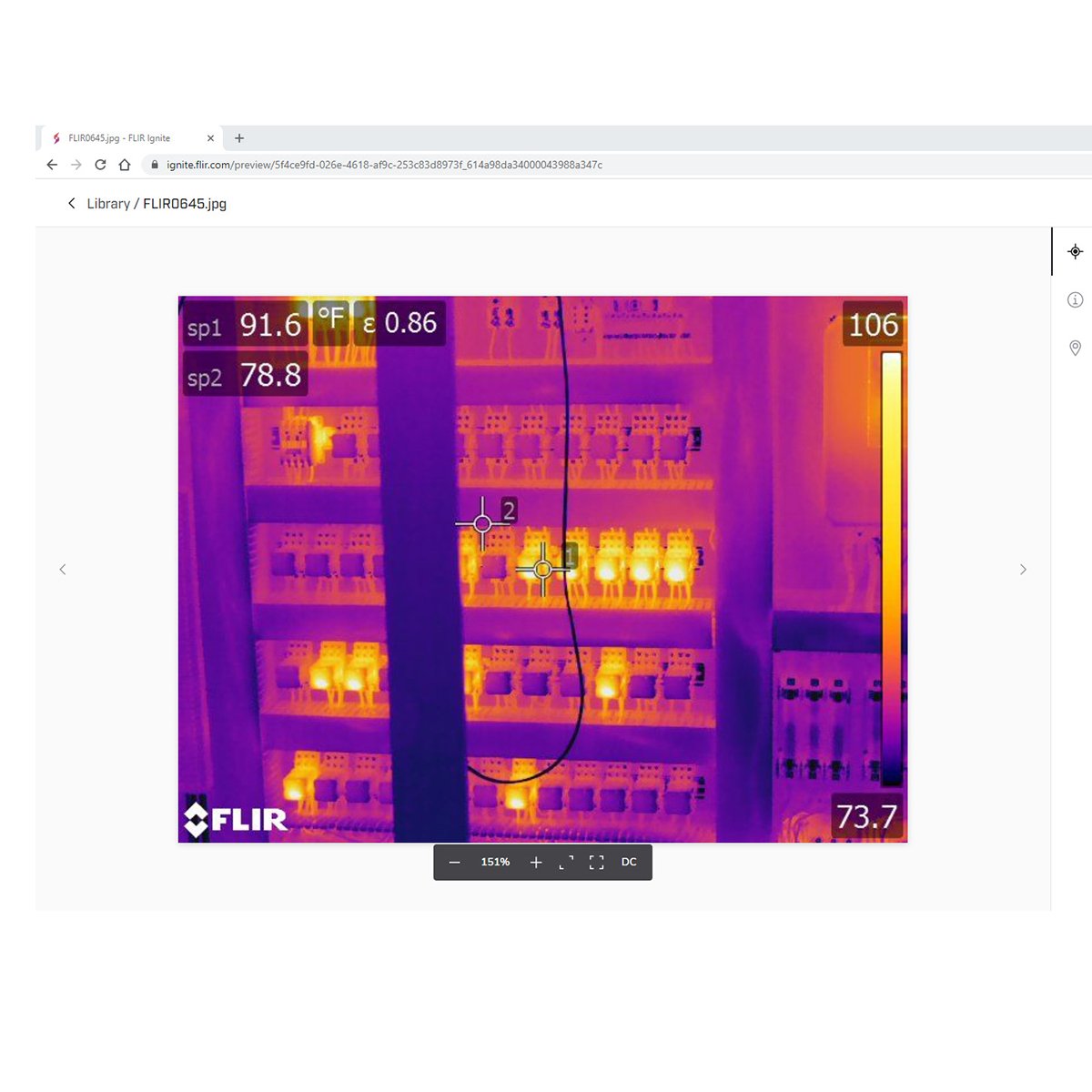

Further increasing efficiency, onboard inspection routing can speed up surveys and simplify reporting, ensuring your results are always correct and well-organized.
Which Camera Should I Choose?
FLIR E86
From $13699
- 464 × 348 thermal imaging
- 8x digital zoom for detailed inspections
- Interchangeable lenses for flexibility
IR Resolution
464 × 348 pixels
Thermal Sensitivity_NETD
<30 mK, 42° at 30°C (86°F)
<40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
<40 mK, 80° at 30°C (86°F)
Accuracy
±2°C (±3.6°F) or ±2% of the reading
FLIR E76
From $8699
- 320 × 240 thermal imaging
- 4x digital zoom
- Interchangeable lenses for flexibility
IR Resolution
320 × 240 pixels
Thermal Sensitivity_NETD
<30 mK, 42° at 30°C (86°F)
<40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
<40 mK at, 80° 30°C (86°F)
Accuracy
±2°C (±3.6°F) or ±2% of the reading
FLIR E54
From $6499
- 320 × 240 thermal imaging
- 4x digital zoom
- Fixed 24° Lens
IR Resolution
320 × 240 pixels
Thermal Sensitivity_NETD
<40 mK at 30°C (86°F)
Accuracy
±2°C (±3.6°F) or ±2% of the reading

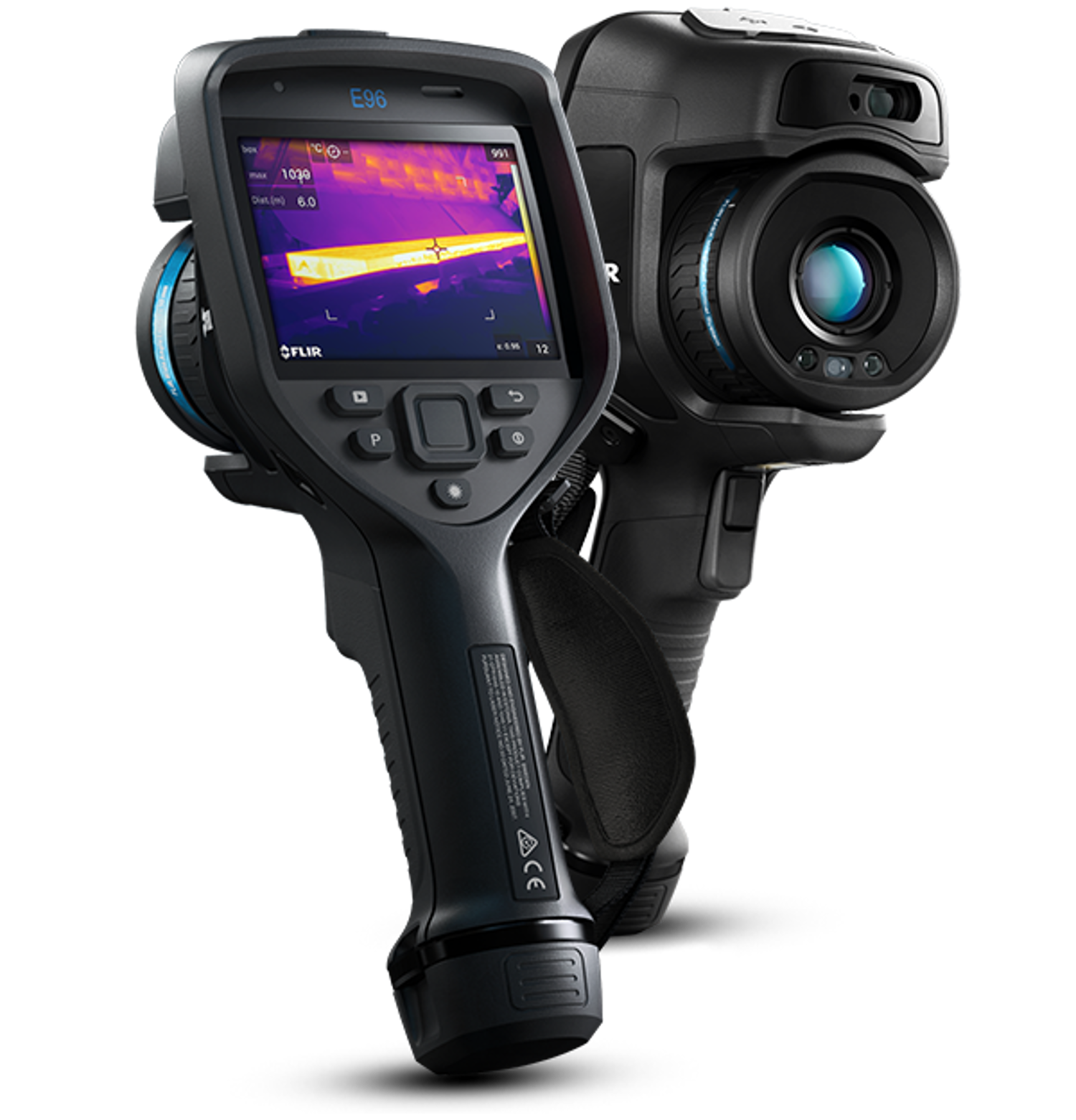

FLIR E96
From $14849
- 640 × 480 thermal imaging
- 8x digital zoom for detailed inspections
- Interchangeable lenses for flexibility
IR Resolution
640 × 480 pixels
Thermal Sensitivity_NETD
<30 mK, 42° at 30°C (86°F)
<40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
<30 mK, 80° at 30°C (86°F)
Accuracy
±2°C (±3.6°F) or ±2% of the reading
IR Resolution
464 × 348 pixels
IR Resolution
320 × 240 pixels
IR Resolution
320 × 240 pixels
IR Resolution
640 × 480 pixels
Thermal Sensitivity_NETD
<30 mK, 42° at 30°C (86°F)
<40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
<40 mK, 80° at 30°C (86°F)
Thermal Sensitivity_NETD
<30 mK, 42° at 30°C (86°F)
<40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
<40 mK at, 80° 30°C (86°F)
Thermal Sensitivity_NETD
<40 mK at 30°C (86°F)
Thermal Sensitivity_NETD
<30 mK, 42° at 30°C (86°F)
<40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
<30 mK, 80° at 30°C (86°F)
Accuracy
±2°C (±3.6°F) or ±2% of the reading
Accuracy
±2°C (±3.6°F) or ±2% of the reading
Accuracy
±2°C (±3.6°F) or ±2% of the reading
Accuracy
±2°C (±3.6°F) or ±2% of the reading
